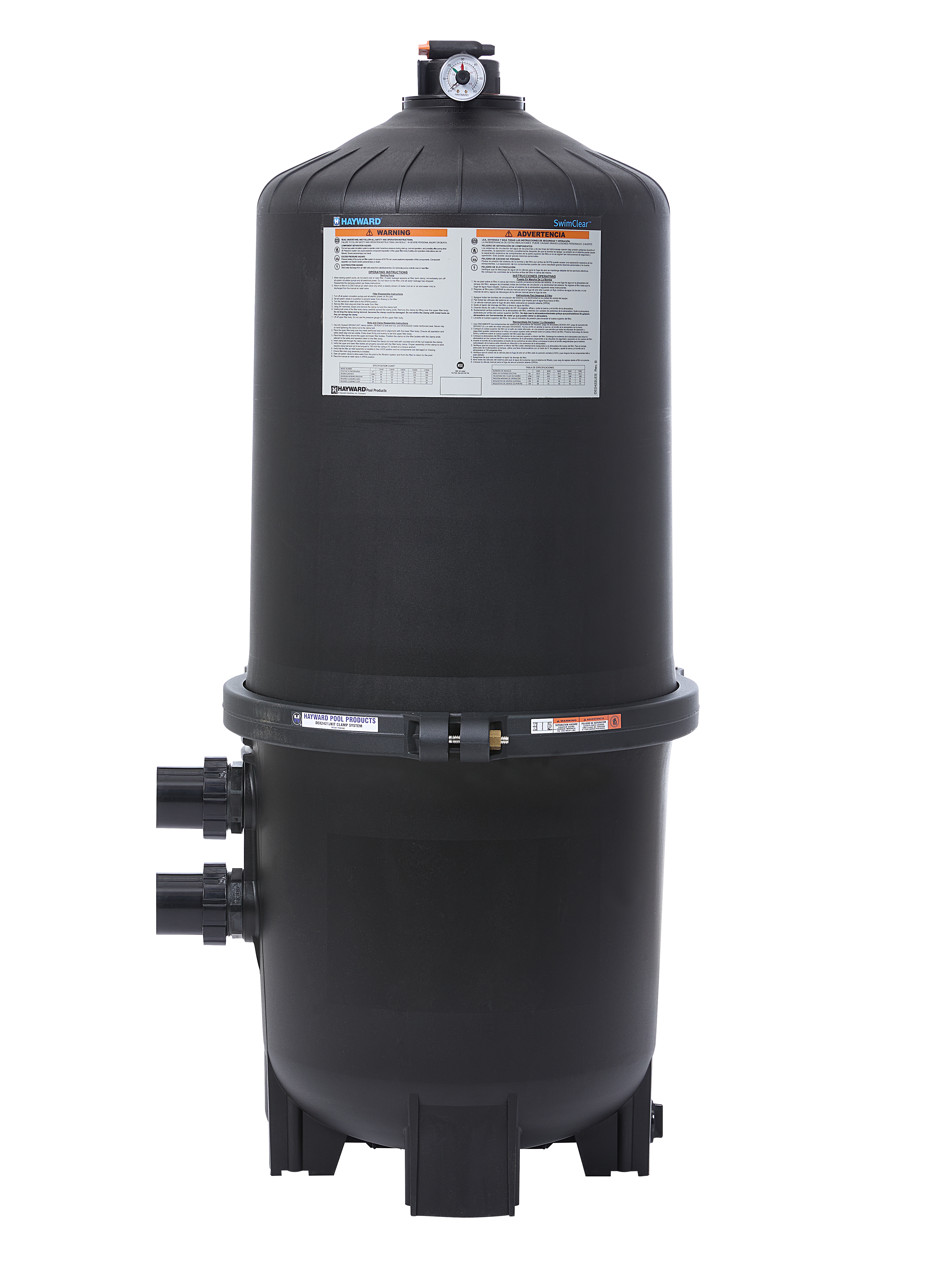

SwimClear Multi-Element Cartridge Filter 725 Sq.Ft

Hayward

SKU: C7030

SwimClear single element cartridge filters capture more dirt for superior water clarity without the need of supplemental media or backwashing, while the industry's lowest head loss reduces energy costs.

Features

SwimClear is also the easiest to service: the Easy-Lok™ ring design, comfort grip handles, and lowest lift height provide fast cleaning and element replacement. SwimClear is an excellent filtration solution for smaller and mid-size pools, spas and water features.


Industry-leading hydraulic efficiency allows the pump to run at a lower speed or for less time, increasing energy savings
Easy-Lok ring design allows quick access to internal components for quick and simple maintenance
Recessed pressure gauge and manual air relief enables user to place head assembly upside down on pool pad, protecting the seal from contamination
2” x 2 1/2” union connections make installation and servicing fast and easy
  • EXPERT LINE products can only be purchased through you local pool professional or in-store.
  • 3+ Year Parts and Labor Warranties*

*When sold by a Totally Hayward® partner. Exclusions, other terms and conditions may apply.

nsf certification logo

NSF Certified

NSF’s comprehensive inspection, testing and certification services ensure our products comply with all major state and provincial health codes, as well as model building and construction codes.

Application Spa, New Construction, Renovation, Pool
Brand Hayward
Cartridge Yes
Channel Expert Line
Clearance for head removal 28 in
Design Flow Rate 150
Drain Port Size 1.5
Effective Filtration Area 700 SQFT
Filter Type Cartridge
Footprint 26 x 26 INCH
GTIN 610377123990
Labor Warranty 1-year
Number of Filter Elements 8
Pallet Qty 8
Parts Warranty 3-year
Pool Type In Ground
Pressure Gauge Yes
Product Dimensions 52.5 " x 24 " x 24 "
Product Height 52.5 in
Product Length 24 in
Product Weight 85 lb
Product Width 24 in
Public Design Flow Rate 150
Quantity 1
Residential Design Flow Rate 150
Series Filters SwimClear
Shipping Dimensions 53.8 " x 23.1 " x 24.6 "
Shipping Height 53.8 in
Shipping Length 24.6 in
Shipping Weight 107.5 lb
Shipping Width 23.1 in
Side Clearance - Filters 18 in
Tank Type GFR
Turnover 10 Hours 90000 GPM
Turnover 8 Hours 72000 GPM
