SwimClear Multi-Element Cartridge Filter 525 Sq.Ft
Hayward
SKU: C5030
SwimClear Multi Element cartridge filters capture more dirt for superior water clarity without the need of supplemental media or back-washing, while the industry's lowest head loss reduces energy costs.
Features
Utilizing a cluster of reusable cartridge elements, SwimClear filters offer a choice of 225, 325, 425 or 525 square feet of heavy-duty dirt-holding capacity for extra-long filter cycles, up to an entire season without cleaning. SwimClear filters will provide years of trouble-free operation and crystal clear, sparkling water.
Features

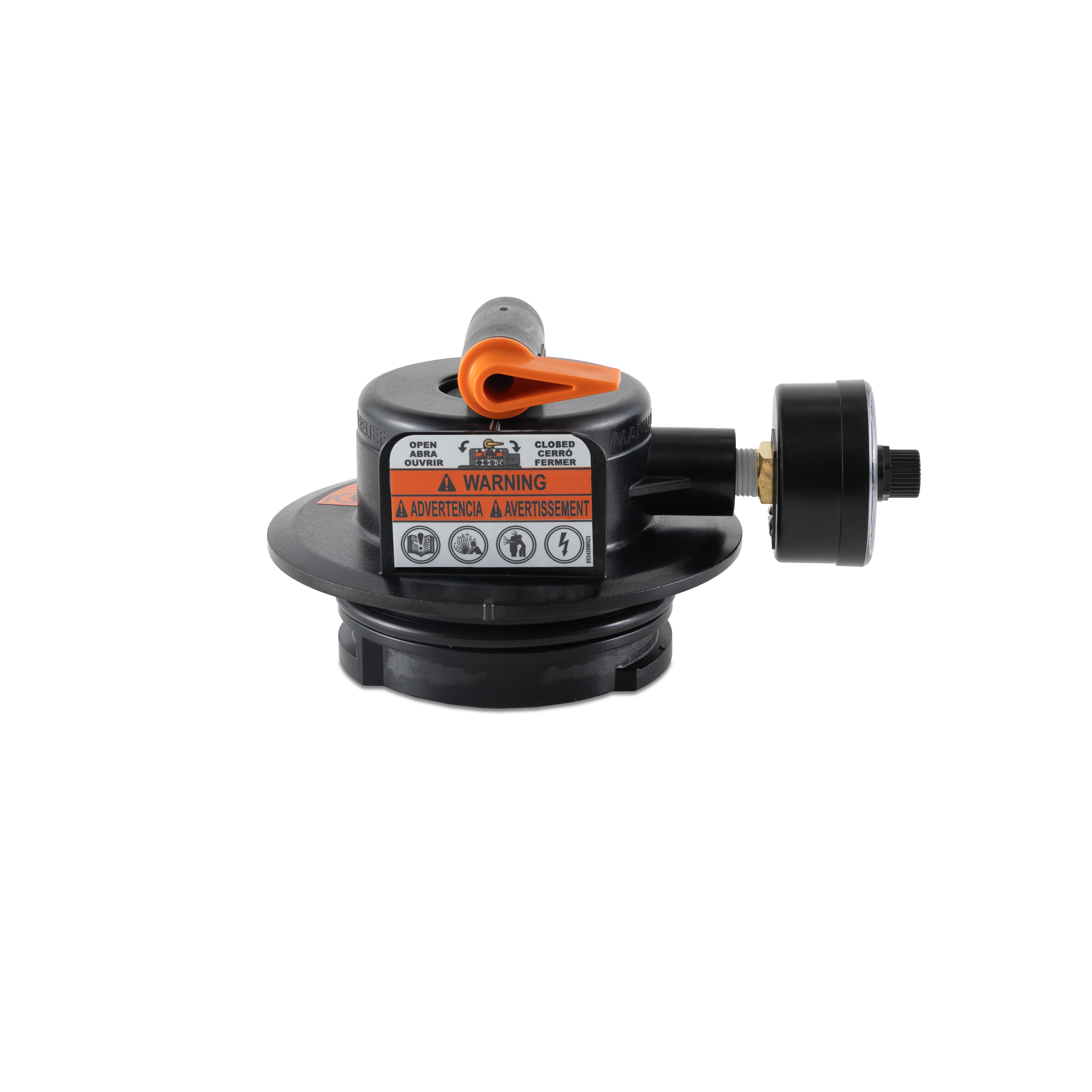

• High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever.
• Filter tanks made from durable glass reinforced co-polymer to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems.
• Self-aligned tank top and bottom make access to serving the Quad-Cluster™ cartridge elements fast and simple

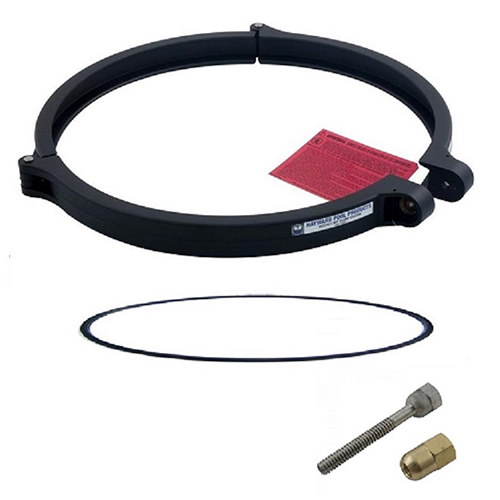

• Heavy-duty, tamper-proof, one-piece clamp securely fastens tank top and bottom. Allows quick access to all internal components without disturbing piping or connections
• Top manifold configuration provides excellent filtration and hydraulic performance
• Non-corrosive top closure plate prevents elements from lifting and allowing unfiltered water to by-pass into pool or spa during operation
• Quad-Cluster of high-quality polyester cartridge
elements provide 225, 325, 425 or 525 square feet of filter area for extra dirt-holding capacity and long filter cycles

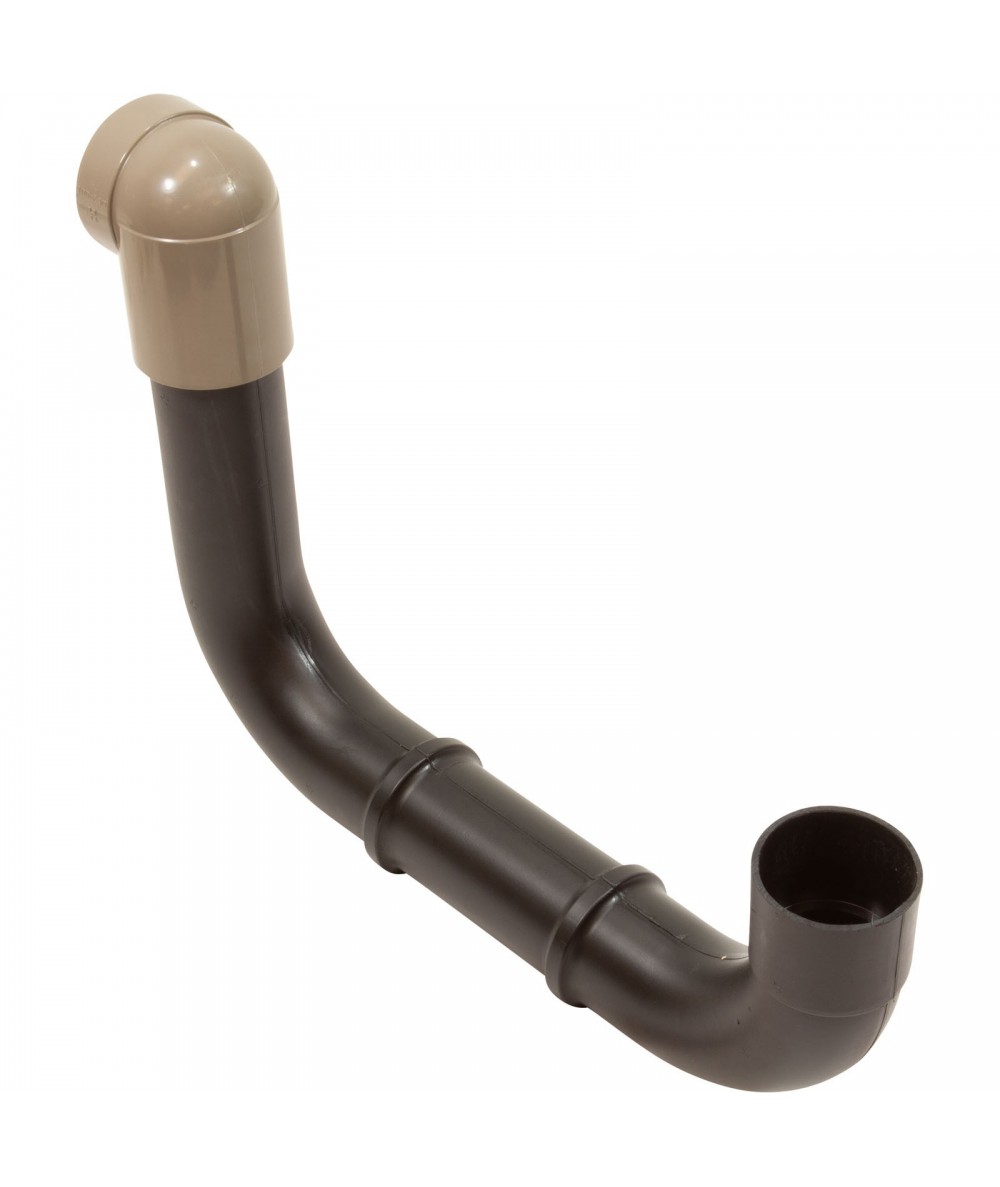

• 2" full-flow internal piping and plumbing for less resistance to flow and maximum performance.
• PVC union coupling connection accepts 2" or 2 1/2" piping for plumbing versatility and hydraulic efficiency.
• Full size 1 1/2" integral drain allows for fast, 100% clean-out and easier flushing of tank
Features
• High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever.
• Filter tanks made from durable glass reinforced co-polymer to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems.
• Self-aligned tank top and bottom make access to serving the Quad-Cluster™ cartridge elements fast and simple
• Heavy-duty, tamper-proof, one-piece clamp securely fastens tank top and bottom. Allows quick access to all internal components without disturbing piping or connections
• Top manifold configuration provides excellent filtration and hydraulic performance
• Non-corrosive top closure plate prevents elements from lifting and allowing unfiltered water to by-pass into pool or spa during operation
• Quad-Cluster of high-quality polyester cartridge
elements provide 225, 325, 425 or 525 square feet of filter area for extra dirt-holding capacity and long filter cycles
• 2" full-flow internal piping and plumbing for less resistance to flow and maximum performance.
• PVC union coupling connection accepts 2" or 2 1/2" piping for plumbing versatility and hydraulic efficiency.
• Full size 1 1/2" integral drain allows for fast, 100% clean-out and easier flushing of tank
- EXPERT LINE products can only be purchased through you local pool professional or in-store.
- 3+ Year Parts and Labor Warranties*
*When sold by a Totally Hayward® partner. Exclusions, other terms and conditions may apply.
NSF Certified
NSF’s comprehensive inspection, testing and certification services ensure our products comply with all major state and provincial health codes, as well as model building and construction codes.
