SwimClear Multi-Element Cartridge Filter 425 Sq.Ft
Hayward
SKU: C4030
SwimClear Multi Element cartridge filters capture more dirt for superior water clarity without the need of supplemental media or back-washing, while the industry's lowest head loss reduces energy costs.
Features
Features
• High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever.
• Filter tanks made from durable glass reinforced co-
polymer to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems.
• Self-aligned tank top and bottom make access to serving the Quad-Cluster™ cartridge elements fast and simple

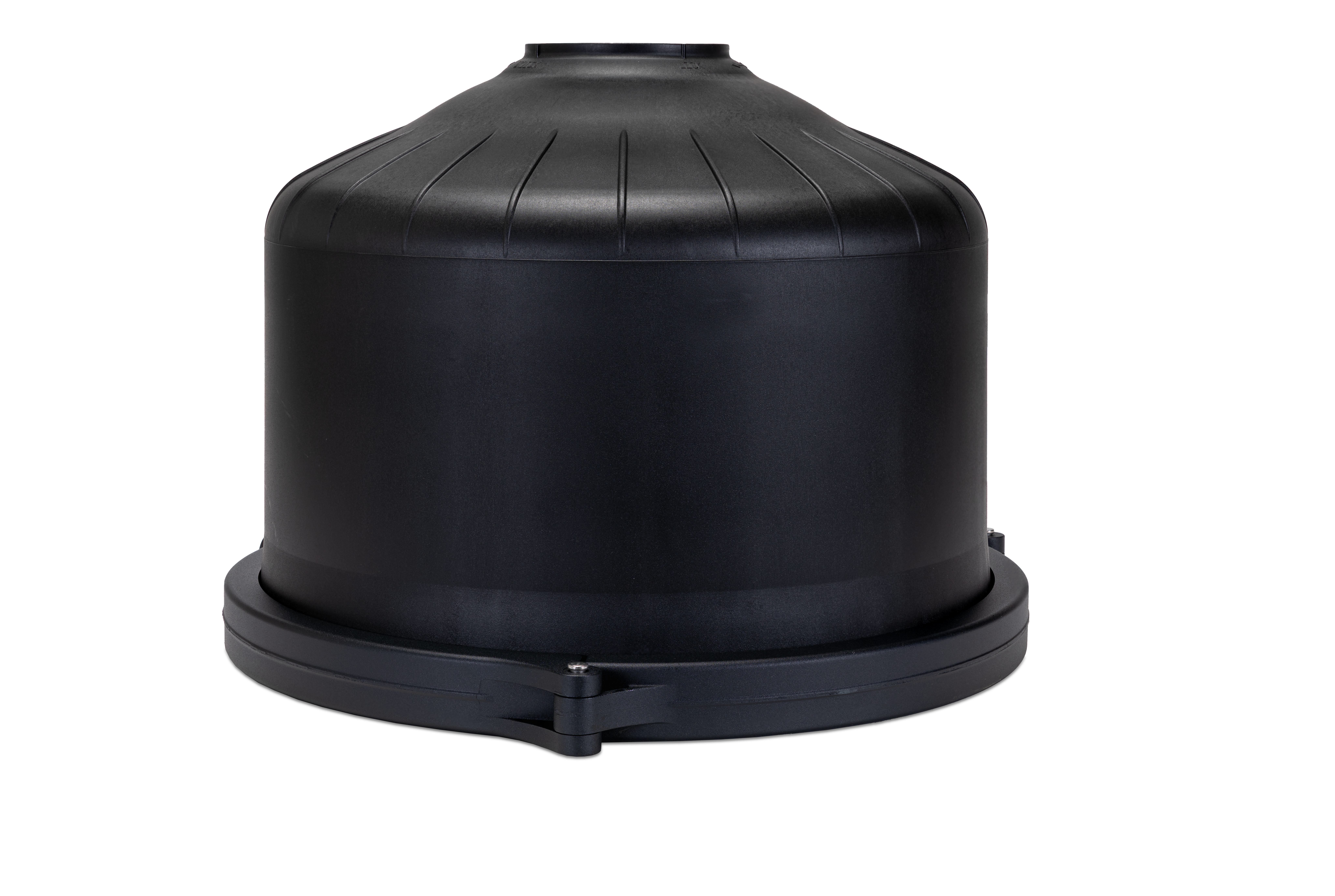

• Heavy-duty, tamper-proof, one-piece clamp securely fastens tank top and bottom. Allows quick access to all internal components without disturbing piping or connections
• Top manifold configuration provides excellent filtration and hydraulic performance
• Non-corrosive top closure plate prevents elements from lifting and allowing unfiltered water to by-pass into pool or spa during operation

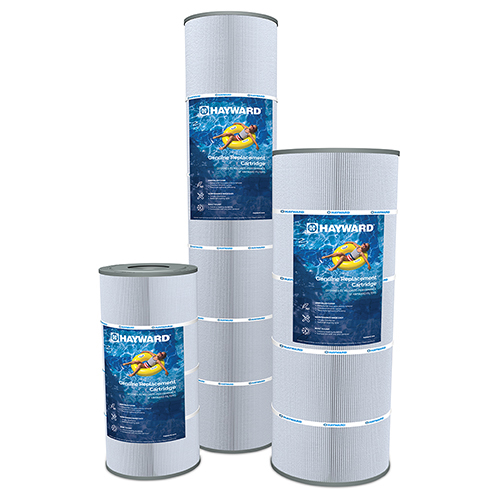

• Quad-Cluster of high-quality polyester cartridge elements provide 225, 325, 425 or 525 square feet of filter area for extra dirt-holding capacity and long filter cycles
• 2" full-flow internal piping and plumbing for less resistance to flow and maximum performance.
• PVC union coupling connection accepts 2" or 2 1/2" piping for plumbing versatility and hydraulic efficiency.
• Full size 1 1/2" integral drain allows for quicker and easier flushing of tank
- EXPERT LINE products can only be purchased through you local pool professional or in-store.
- 3+ Year Parts and Labor Warranties*
*When sold by a Totally Hayward® partner. Exclusions, other terms and conditions may apply.
NSF Certified
NSF’s comprehensive inspection, testing and certification services ensure our products comply with all major state and provincial health codes, as well as model building and construction codes.
Brand | Hayward |
---|---|
Cartridge | Yes |
Channel | Expert Line |
Clearance for head removal | 18 in |
Design Flow Rate | 150 |
Drain Port Size | 1.5 |
Effective Filtration Area | 425 SQFT |
Filter Type | Cartridge |
Footprint | 26 x 26 INCH |
GTIN | 610377123952 |
Labor Warranty | 1-year |
Number of Filter Elements | 4 |
Pallet Qty | 8 |
Parts Warranty | 3-year |
Pool Type | In Ground |
Pressure Gauge | Yes |
Product Dimensions | 40.5 " x 24 " x 24 " |
Product Height | 40.5 in |
Product Length | 24 in |
Product Weight | 69 lb |
Product Width | 24 in |
Public Design Flow Rate | 150 |
Quantity | 1 |
Residential Design Flow Rate | 150 |
Series Filters | SwimClear |
Shipping Dimensions | 41.8 " x 24.6 " x 23.1 " |
Shipping Height | 41.8 in |
Shipping Length | 23.1 in |
Shipping Weight | 83 lb |
Shipping Width | 24.6 in |
Side Clearance - Filters | 18 in |
Tank Type | GFR |
Turnover 10 Hours | 90000 GPM |
Turnover 8 Hours | 72000 GPM |
Literature
SwimClear Multi Element Sell Sheet (LITSCMESS24B) (opens in new tab)
SwimClear Top Manifold Cartridge Filters Owner's Manual (ISC2030RevC) (opens in new tab)
Manuals
SwinClear Cartridge Filter Owner's Manual (ISC2031RevB) Spanish (opens in new tab)
SwimClear Cartridge Filter Owner's Manual (ISC2031EFRevB) (opens in new tab)
SwimClear Cartridge Filter Owner's Manual (ISCS100RevD) (opens in new tab)
StarClear Plus to SwimClear Upgrade Instructions (QRGCS100RevA) (opens in new tab)
