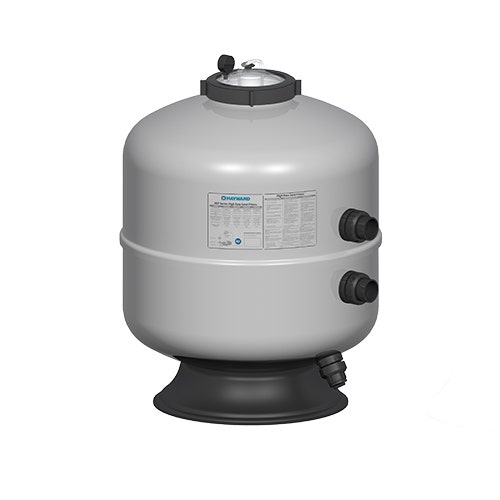

HCF Series 30" Laminated Sand Filter

Hayward

SKU: HCF230C

The HCF Series Sand Filter is engineered to stand the test of time. An optimized internal and external design improves filter cycle times, accuracy, install times and reduces maintenance while increasing durability against compromising elements.

Features

The HCF Series Filters feature an improved internal and external design that enhances performance and endurance. The filters distribute water more evenly with a multi-diffuser configuration, increasing filter cycles, effectiveness, and longevity of the filter. Installation and maintenance are easier than ever before. A transparent manway simplifies operation and the UV-protected and infusion molded fiberglass shell reduces corrosion and shields the unit from the elements, such as blooming and biofilm build up.

• Multi-diffuser distribution heads and oversized laterals improve filtration and lengthen filter cycle
• UV-protected gel coat protects from the elements
• High performance filtration and longer service life
• Transparent manway design simplifies operation
• Dual-Head (HCF230) or Quad-Head (HCF234 and HCF236) Diffusers provide optimized water distribution
• Commercial-grade PVC and ABS injection-molded internals with 360° slotted lateral provide high performance and resistance in corrosive applications
• Industrial valve and pressure gauge configuration offer durability and increased accuracy
• 34″ model fits through standard 36″ doorways with no need to remove the door frame, simplifying replacement installations
• New warranty policy; 5-year parts, 1-year labor
• NSF/ANSI Standard 50 Certified
nsf certification logo

NSF Certified

NSF’s comprehensive inspection, testing and certification services ensure our products comply with all major state and provincial health codes, as well as model building and construction codes.

Backwash Flow Rate 100
Brand Hayward
Cartridge No
Channel Open Line
Design Flow Rate 100
Drain Port Size 2
Effective Filtration Area 4.9 SQFT
Filter Type Sand
Footprint 31 -1/2 x 31 - 1/2"
GTIN 610377404105
Master Carton Qty 1
Maximum Working Pressure 50 PSI
Parts Warranty 5-year
Pool Type Commercial
Pressure Gauge Yes
Product Dimensions 43.5 " x 31.5 " x 31.5 "
Product Height 43.5 in
Product Length 31.5 in
Product Weight 75 lb
Product Width 31.5 in
Public Design Flow Rate 100
Residential Design Flow Rate 100
Sand Capacity 600 lbs
Series Filters HCF
Shipping Dimensions 45.2 " x 38.2 " x 38.2 "
Shipping Height 45.2 in
Shipping Length 38.2 in
Shipping Weight 140 lb
Shipping Width 38.2 in
Side Clearance - Filters 18 in
Tank Type GCF
Turnover 10 Hours 60000 GPM
Turnover 8 Hours 48000 GPM
Valve Included Not Included
Vertical Clearance Filters 18 in
