Features

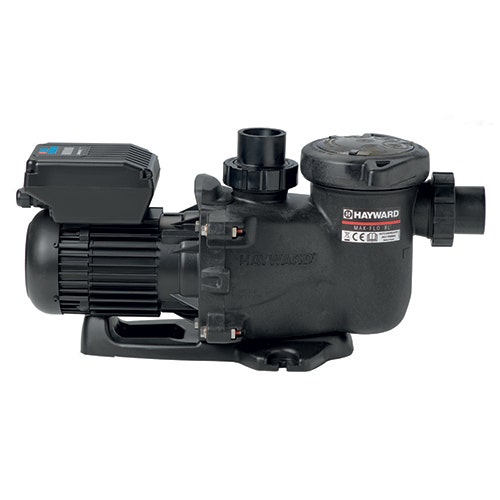

Hayward’s XE Series Pumps are the ultimate solution for upgrading from single-speed pumps to DOE-compliant pumps. Union connections and a riser base allow for simple drop-in replacement of competitive pumps. Not only do XE Series Pumps exceed DOE standards for WEF ratings, they’re also priced up to 1/3 less than traditional variable-speed pumps and its WEF ratings even surpass most Pentair and Jandy variable-speed pumps meaning a lower upfront cost plus lower operating cost compared to the competition.
• Industry-leading efficiency exceeds DOE benchmarks and efficiency of many competitive VS pumps
• Easily programmable with up to 6 selectable speeds
• Dual-voltage capability (230V/115V) offers more versatility for installation
• Chemical-resistant Viton® seal offers improved resistance against chemical imbalances
• Simple installation includes standard 2" x 2.5" CPVC unions and doesn't require any additional equipment
• Industry-leading efficiency exceeds DOE benchmarks and efficiency of many competitive VS pumps
• Easily programmable with up to 6 selectable speeds
• Dual-voltage capability (230V/115V) offers more versatility for installation
• Chemical-resistant Viton® seal offers improved resistance against chemical imbalances
• Simple installation includes standard 2" x 2.5" CPVC unions and doesn't require any additional equipment

- EXPERT LINE products can only be purchased through you local pool professional or in-store.
- 3+ Year Parts and Labor Warranties*
*When sold by a Totally Hayward® partner. Exclusions, other terms and conditions may apply.
Brand | Hayward |
---|---|
Channel | Expert Line |
GTIN | 610377312806 |
Labor Warranty | None |
Master Carton Qty | 1 |
Motor Type | ODP |
Parts Warranty | 3-year |
Phase | Single Phase |
Pool Type | In Ground |
Quick Clean Button | No |
Remote Mount Display | No |
Rotatable Display | No |
Shipping Dimensions | 15.6 " x 12.3 " x 30.3 " |
Shipping Height | 15.6 in |
Shipping Length | 30.3 in |
Shipping Weight | 45 lb |
Shipping Width | 12.3 in |
Total HP | 2.25 |
Twist Lock | No |
Voltage at 60 Hz | 230/115 |
WEF | 8.4 / 8.7 |
