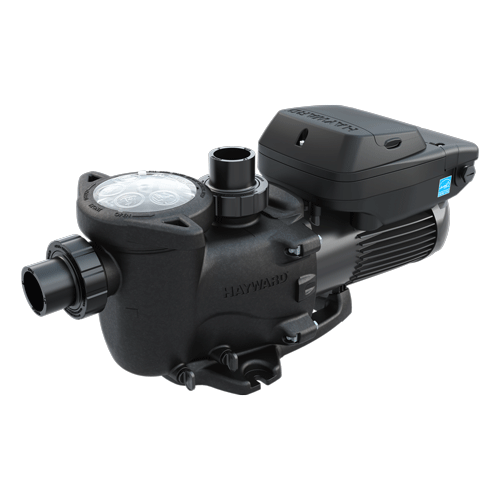

MaxFlo VS 500 Pump, 1.65HP (Open Line)

Hayward

SKU: W3SP2303VSP

MaxFlo VS™ 500 variable-speed pump built with dual-voltage capability, is the newest addition to the MaxFlo pump family that provides significant savings over single-speed pumps.

Features

MaxFlo VS™ 500 variable-speed pump built with dual-voltage capability, is the newest addition to the MaxFlo pump family that provides significant savings over single-speed pumps. MaxFlo VS™ 500 is an easy drop-in upgrade.

Features and Benefits

  • Weighted Energy Factor (WEF) for 115V = 10.7 and 230V = 10.2. The higher the WEF, the more efficient the pump
  • Upgraded dual-voltage motor drive that maintains optimal operating efficiency
  • Extended-life Viton pump seal provides improved resistance against chemical imbalances
  • Intuitive control pad can be rotated in four directions on the pump or removed and wall mounted
  • Super-efficient permanent magnet, totally enclosed fan-cooled motor
  • Can operate in standalone mode or connect to any automation system
  • Designed to replace most medium-head pumps up to 1.65 total HP
  • Intuitive control pad can be rotated in four directions on the pump or removed and wall mounted
  • May be eligible for local energy rebates based on its ENERGY STAR® rating
  • Extended 3-year warranty available
Brand Hayward
Channel Open Line
DOE Compliant Yes
GTIN 610377388016
Labor Warranty None
Master Carton Qty 1
Motor Type TEFC
Number of Speeds Variable Speed
Parts Warranty 1-year
Phase Single Phase
Pool Type In Ground
Quick Clean Button No
Remote Mount Display No
Rotatable Display No
Shipping Dimensions 15.6 " x 12.3 " x 30.3 "
Shipping Height 15.6 in
Shipping Length 30.3 in
Shipping Weight 45 lb
Shipping Width 12.3 in
Total HP 1.65 HP
Twist Lock No
Voltage at 60 Hz 230
WEF 10.7
Parts Details

Click on the part number in the diagram to display the details.
