Features

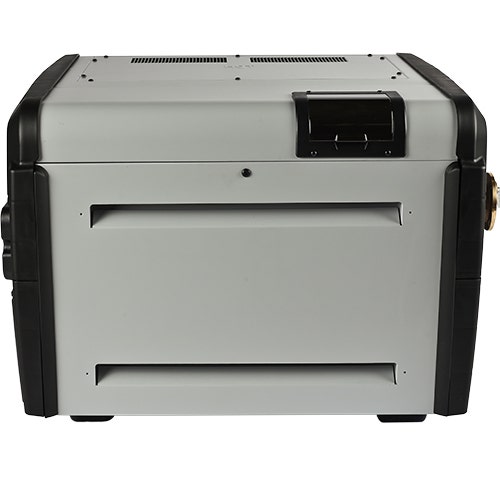

Hayward Commercial Pool's Universal H-Series ASME gas heaters are designed and certified for commercial use. The flagship of our H-Series line encompasses high-end features and construction materials as standard. They combine industry-leading hydraulics, exceptional performance, energy efficiency and reliability, with planet-friendly low-NOx emissions. Flexible connection options make them ideal for new or existing applications. Choose from 250,000, and 400,000, and 500,000 BTU natural gas or propane models.
• Patented Cupro Nickle Finn Plate™ heat exchanger with bronze header as standard
• Independent left or right side electric, water and gas connections
• 2in x 2 1/2in CPVC flanged connections
• ASME pressure relief valve included as standard
• Electronic lock-out feature prevents unauthorized access to configuration settings
• Easy installation and service via access of single front panel
• Easy gas valve adjustment
• Easy dual voltage conversion with fuse-protected circuit boards
• Texas Heater Kits Available
• 500,000 BTU provides unprecedented speed to heat, with just 2 models delivering 1 million BTU’S while using minimal pump room space
• Patented Cupro Nickle Finn Plate™ heat exchanger with bronze header as standard
• Independent left or right side electric, water and gas connections
• 2in x 2 1/2in CPVC flanged connections
• ASME pressure relief valve included as standard
• Electronic lock-out feature prevents unauthorized access to configuration settings
• Easy installation and service via access of single front panel
• Easy gas valve adjustment
• Easy dual voltage conversion with fuse-protected circuit boards
• Texas Heater Kits Available
• 500,000 BTU provides unprecedented speed to heat, with just 2 models delivering 1 million BTU’S while using minimal pump room space
- EXPERT LINE products can only be purchased through you local pool professional or in-store.
- 3+ Year Parts and Labor Warranties*
*When sold by a Totally Hayward® partner. Exclusions, other terms and conditions may apply.
Active Defrost | No |
---|---|
Application | New Construction, Renovation |
Boost Mode | No |
Brand | Hayward |
Channel | Expert Line |
Circuit Amps | 5.5000 |
Cooling Capability | No |
Fuel Type | Propane |
GTIN | 610377135276 |
Heating Capacity (BTU/hr) | 250000 |
Hertz | 60 Hz |
Kilowatts | 73 kW |
Labor Warranty | 3-year |
Low Ambient Operation | Yes |
Master Carton Qty | 1 |
Maximum Fuse Breaker Size (Amps) | 15.0000 |
Pallet Qty | 1 |
Parts Warranty | 3-year |
Phase Heaters | 1.0000 |
Pool Type | Commercial |
Product Dimensions | 24 " x 25 " x 29.5 " |
Product Height | 24 in |
Product Length | 29.5 in |
Product Weight | 195 lb |
Product Width | 25 in |
Rear Clearance - Heaters | 6 in |
Refrigerant | Yes |
Series Heaters | Universal HSeries |
Shipping Dimensions | 29.3 " x 32 " x 33 " |
Shipping Height | 29.3 in |
Shipping Length | 33 in |
Shipping Weight | 203 lb |
Shipping Width | 32 in |
Side Clearance - Heaters | 12 in |
Silent Mode | No |
Voltage - Heaters | 120/240 Volts |
Water Flow Rate Max | 125 |
Water Flow Rate Min | 25 |
